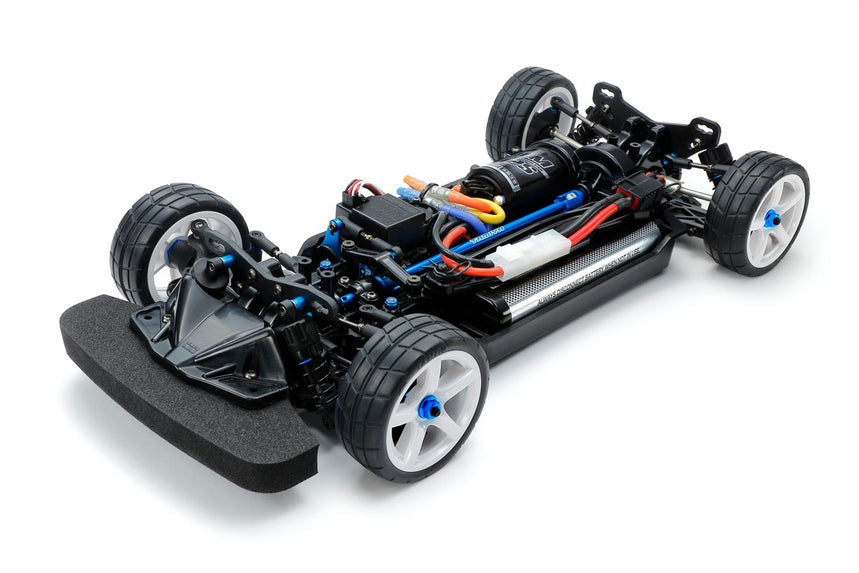

TT-02 Type-SRX 1/10 Scale R/C 4WD High Performance Racing Car Chassis Kit

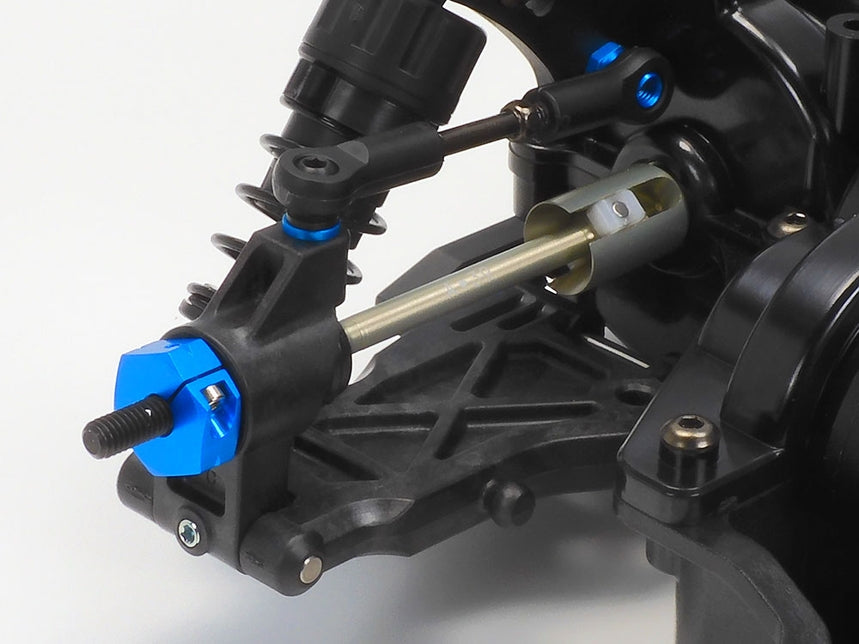

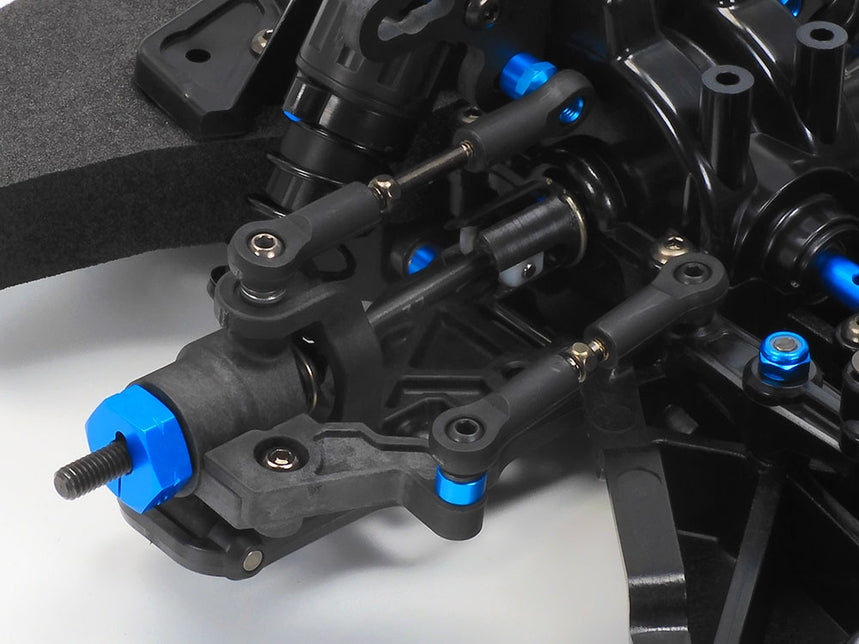

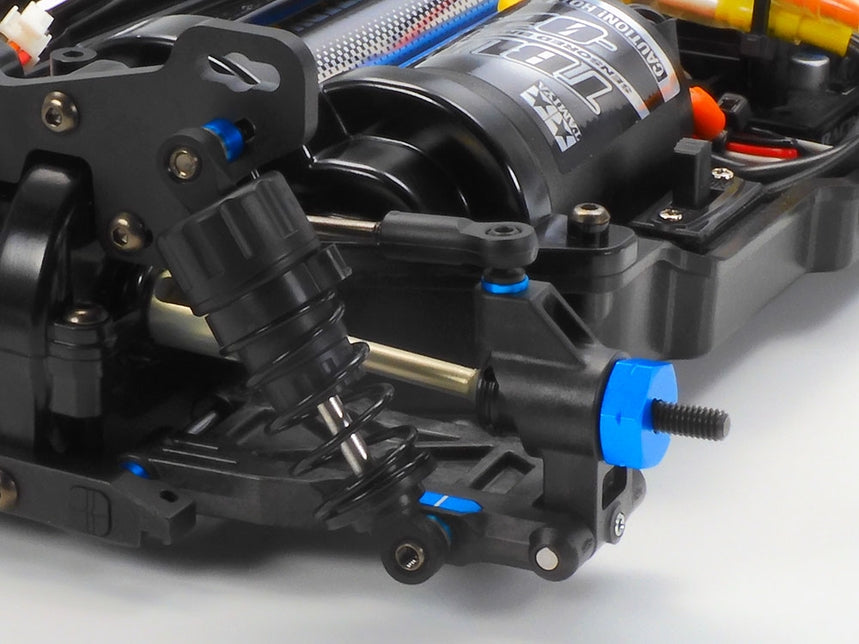

This kit sees the versatile beginner chassis TT-02 paired with a host of Hop-Up Options and other parts to raise its racing ability and tuneability. The efficient drivetrain employs a front direct coupling and double cardan drive shafts, with a rear oil gear differential. TRF420 design suspension arms give great feedback during your drive, and the rear suspension can be fine-tuned via its adjustable mount. Its 27T pinion and 68T spur gears give a gear ratio of 6.55:1.

Specifications

• Length: 361mm, width: 183mm
• Wheelbase: 258mm
• Bathtub type frame

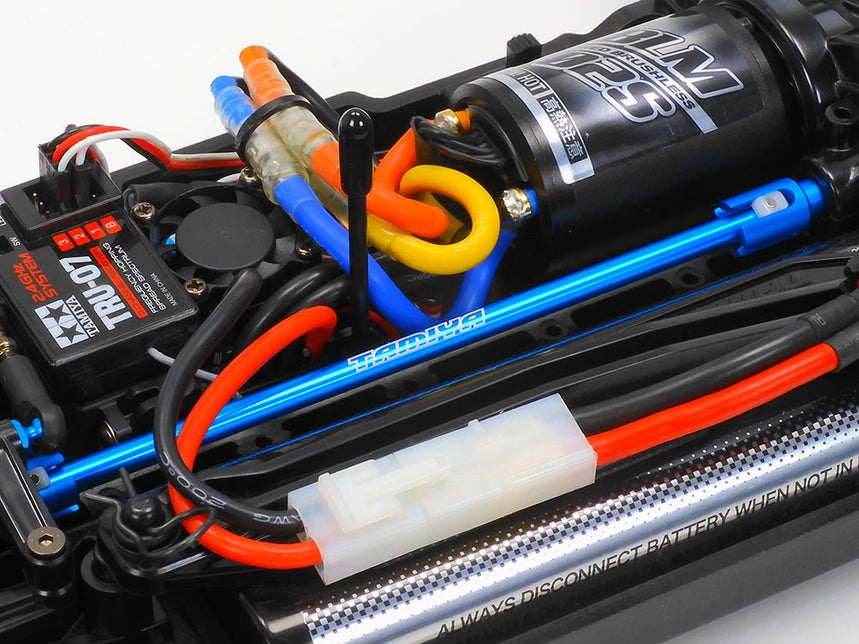

• Longitudinal motor, shaft driven 4WD

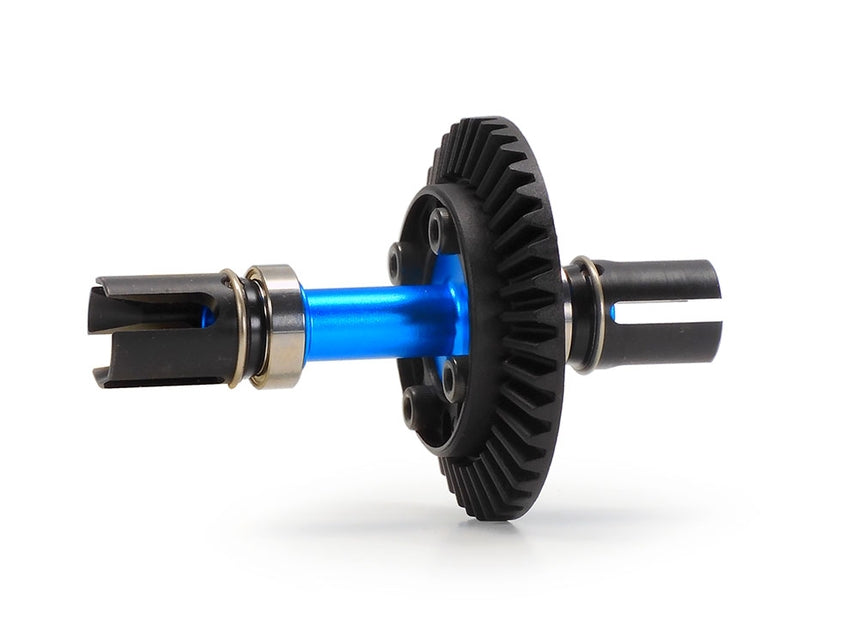

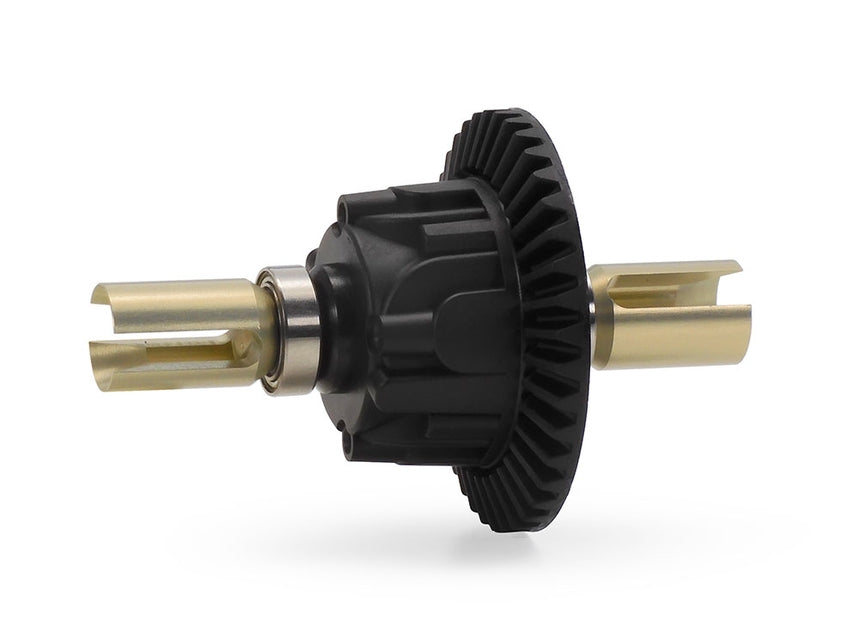

• Front direct coupling, rear oil gear differential

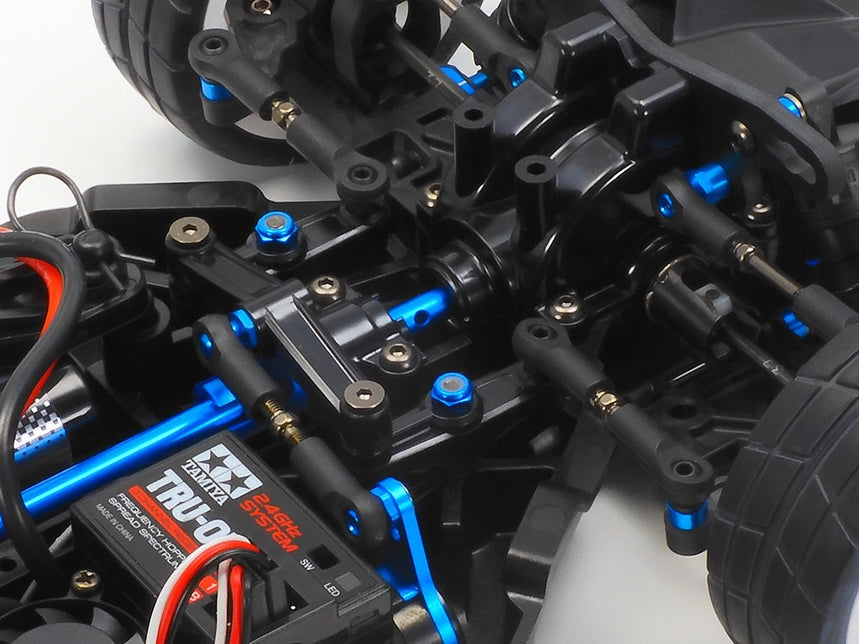

• 3-piece steering tie-rod

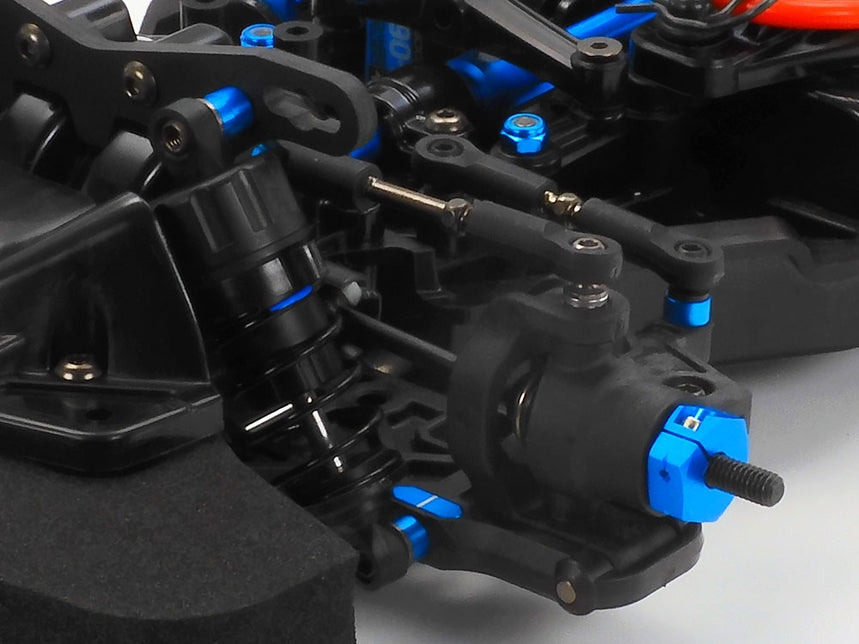

• 4-wheel double wishbone suspension
• CVA oil dampers
• Gear ratio = 6.55:1 (with kit standard 27T pinion and 68T spur gears)
• Type 540 motor and electronic speed controller (ESC) are sold separately.

Separately Required Items

• Body
• Brushless motor
• Tires
• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger
