Tamiya 84263 - 1/10 RC Tyrrell P34 Six Wheeler 1977 Monaco GP F103 Chassis [Limited Item] [84263]

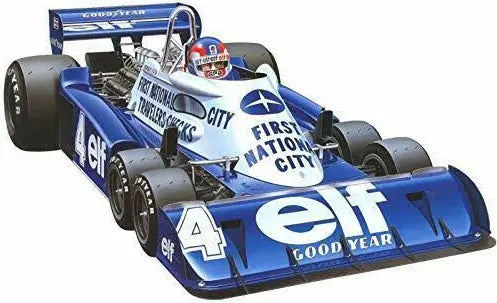

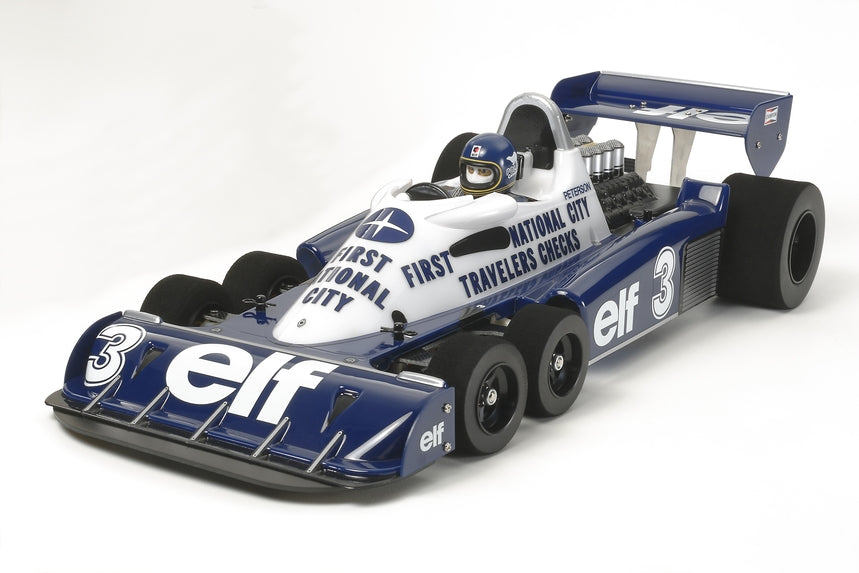

The Tyrrell P34, the only 6-wheeled F1 race car ever to compete in the history of F1, caused a lot of fanfare and controversy when it was introduced in 1976. This is a 1/10 R/C assembly kit model of the Tyrrell P34 which raced at the 1977 Monaco GP, which had a different rear wing and engine cover than the car which raced at the Japanese GP.

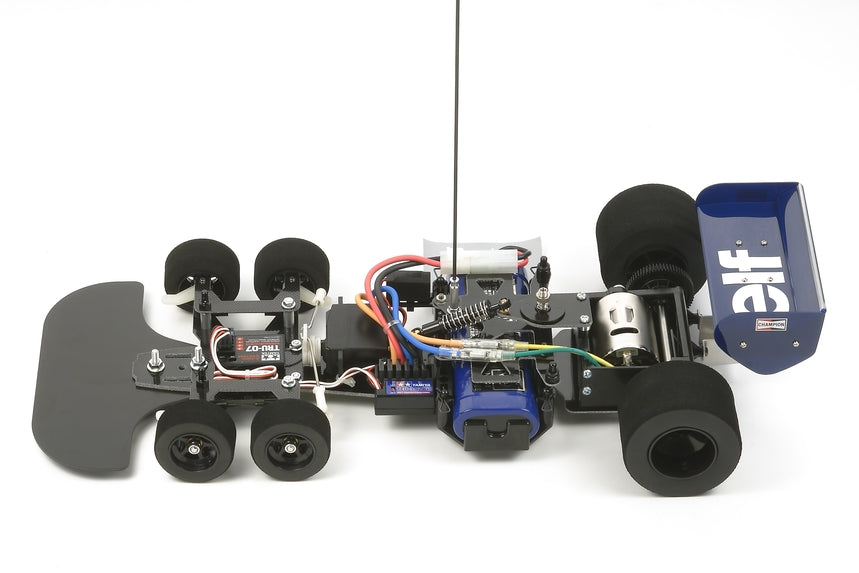

The high performance direct drive 2WD chassis has a semi-double deck layout with 1.5mm thick upper and 2.5mm thick lower FRP plates. The kingpin and coil spring 4-wheel independent front suspension consists of a one-piece lower arm and left/right upper arms. One servo controls the steering of all four front wheels. The rear suspension features a rigid T-bar suspension with a coil spring and friction plate. The spur gear has a built-in ball diff that provides a limited slip effect. In addition, both front and rear wheels are equipped with high-grip sponge tires.

Specs & Features

• 1/10 scale R/C assembly kit.
• P34 Tyrell body is made out durable polycarbonate material.
• Stickers are included to depict team drivers Jody Scheckter&39;s No.3 and Patrick Depailler&39;s No.4 cars.
• High performance direct drive 2WD chassis comes equipped with a half double deck frame with 1.5mm thick upper and
• 2.5mm thick lower FRP plates.
• Kingpin coil spring front suspension.
• Links control the front 4-wheel independent suspension.
• One servo controls all four front wheels.
• The rear suspension features a rigid T-bar suspension with a coil spring and friction plate.
• Front and rear foam tires included.
• 540-J brushed motor included
• Length: 430mm
• Width: 204mm
• Height: 108mm
• Weight: 815g
• Tread: 140mm (Front), 155mm (Rear)
• Tire Width/Diameter: 23/44mm (Front), 45/64mm (Rear)
• Gear Ratio: 4.5:1 (when used with 14T pinion and 63T spur gears)
• Requires an Electronic Speed Controller (sold separately)
