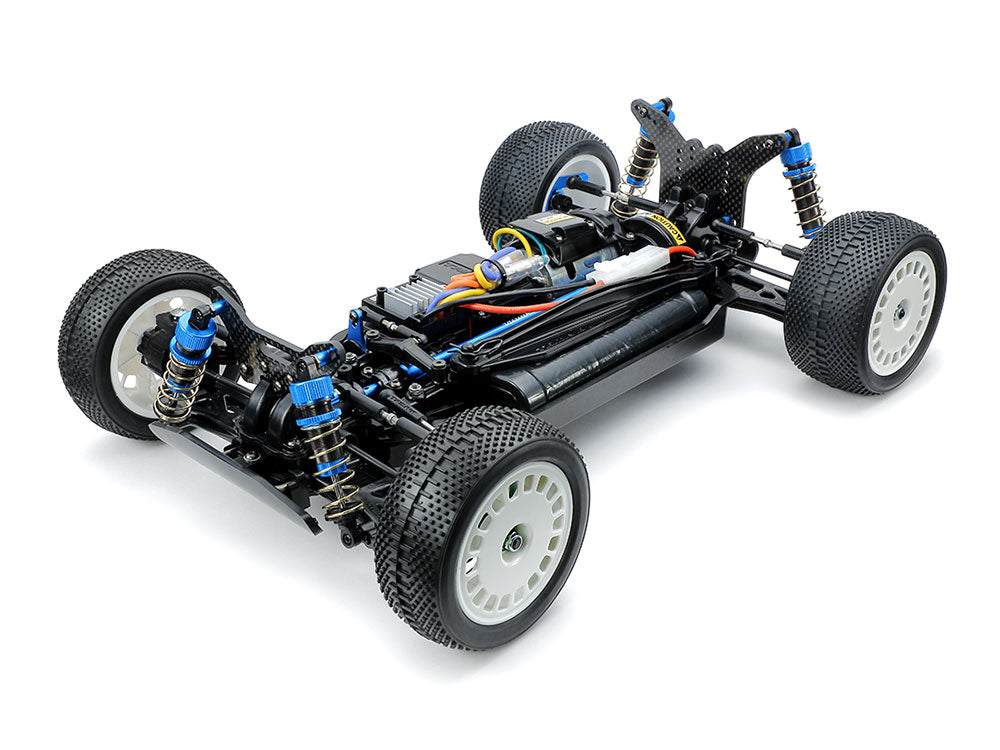

TT-02 BR 1/10 Scale R/C 4WD High Performance Off-Road Racer Chassis Kit

Race-Oriented Buggy Chassis

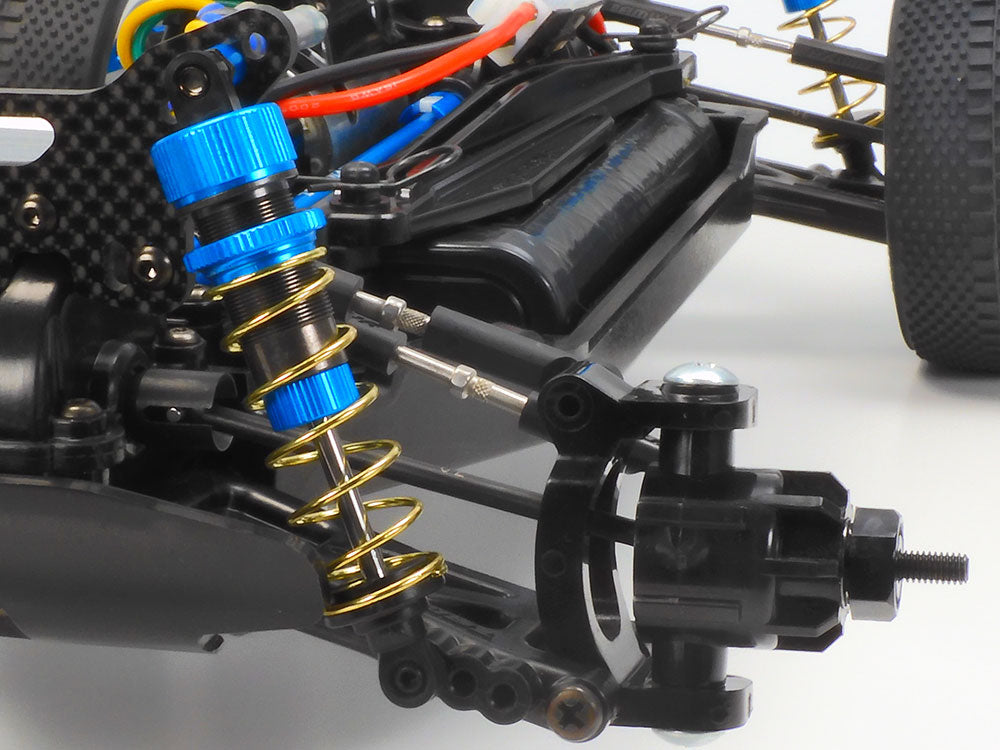

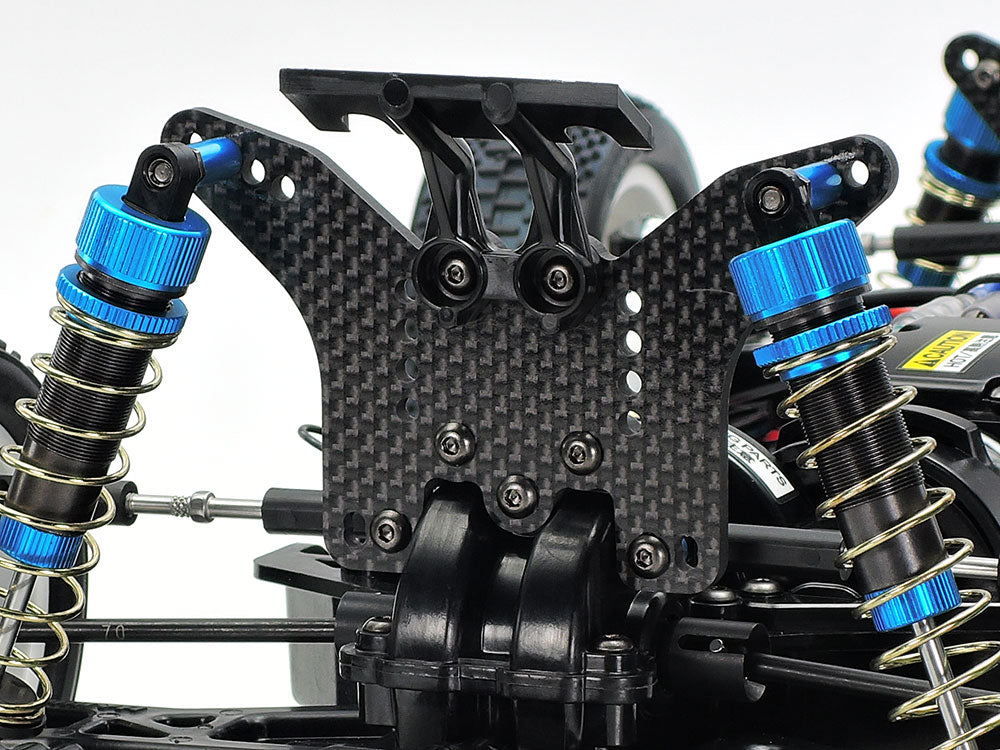

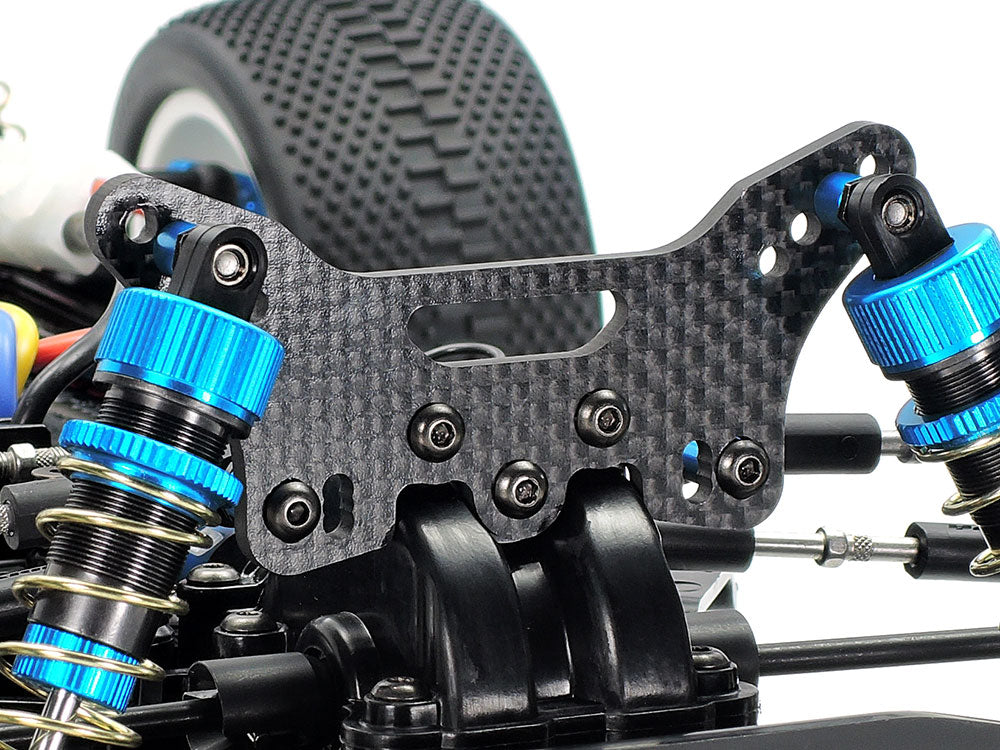

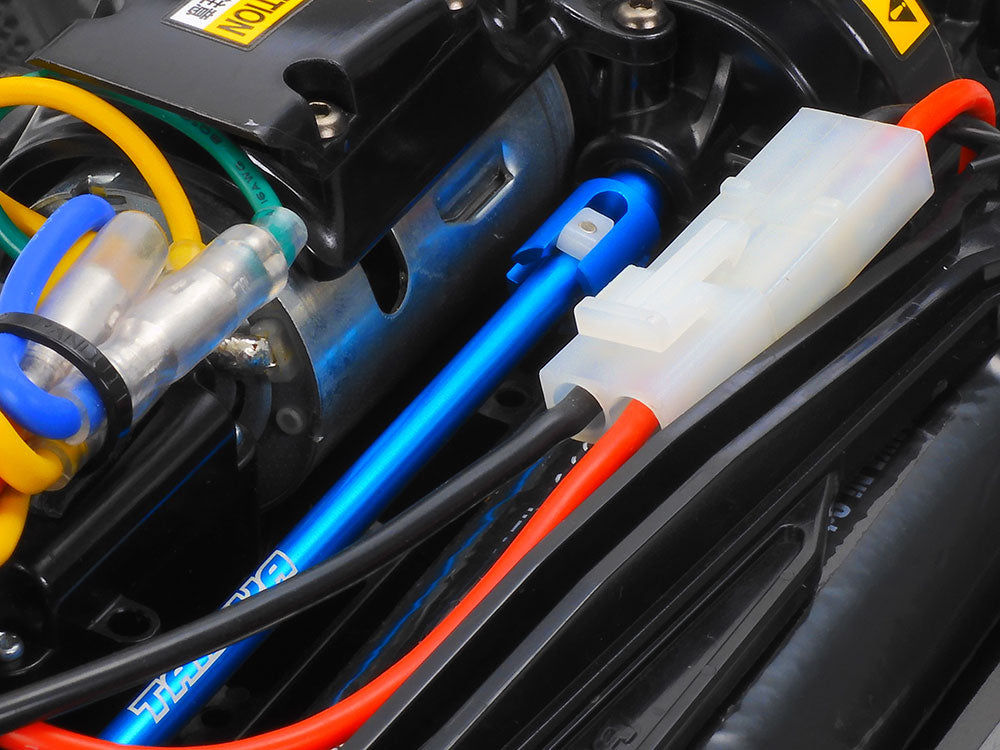

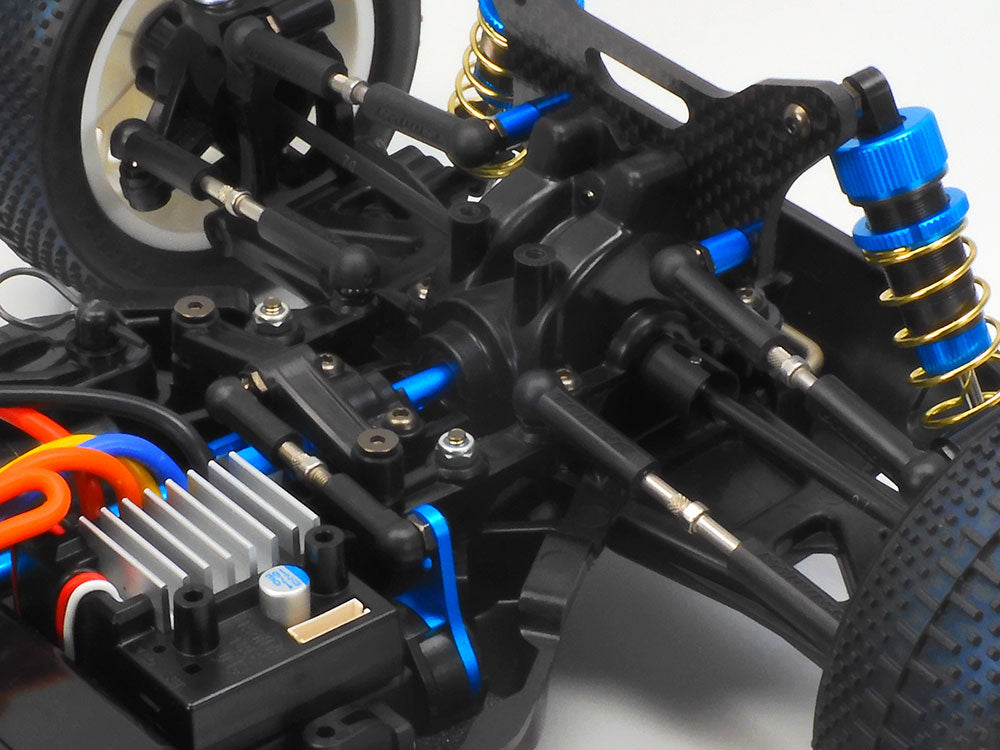

This chassis assembly kit is an upgraded version of the 4WD off-road TT-02B chassis kit with a wealth of extra parts. The drivetrain uses XV-02 oil gear differential units to adjust the effectiveness of gear differential, propeller joints with internal plastic parts to limit wear, front and rear universal drive shafts, and full ball bearings. Its suspension features new 3mm thickness carbon fiber damper stays to give more setup options, while the angle of rear wing high downforce is adjustable. Longer turnbuckle shafts help prevent plastic adjuster sections from deforming.

Specifications

• Length: 388mm, width: 183mm, height: 258mm
• Wheelbase: 258mm
• Bathtub type frame
• Shaft driven 4WD

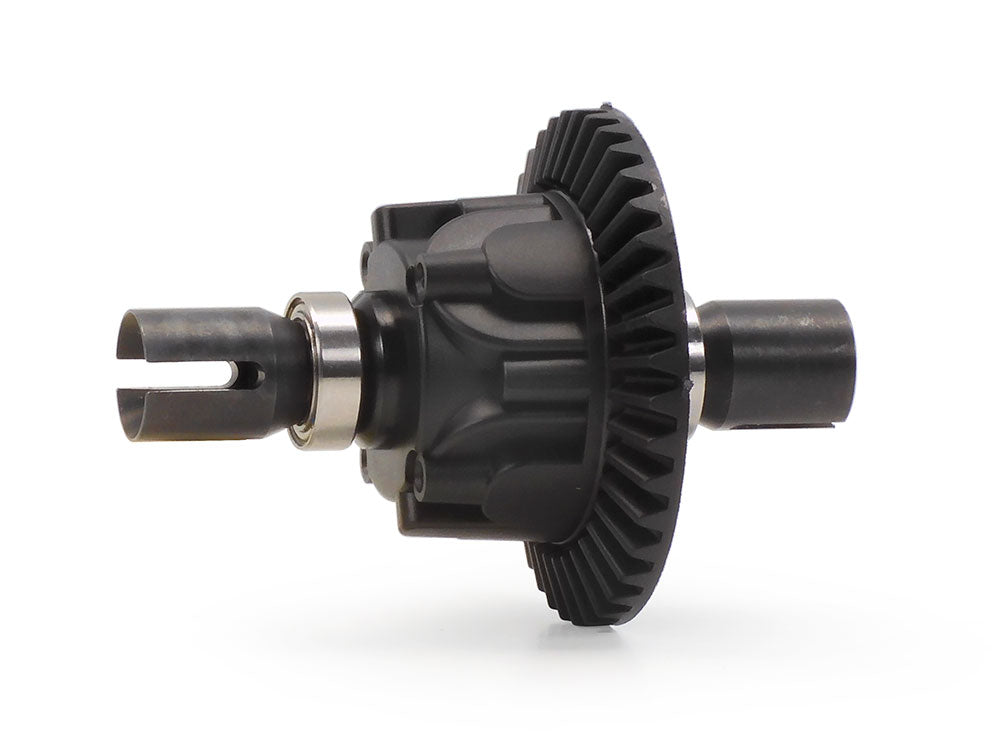

• Front/rear oil gear differentials (with dedicated diff joints)
• 3-piece steering tie-rod

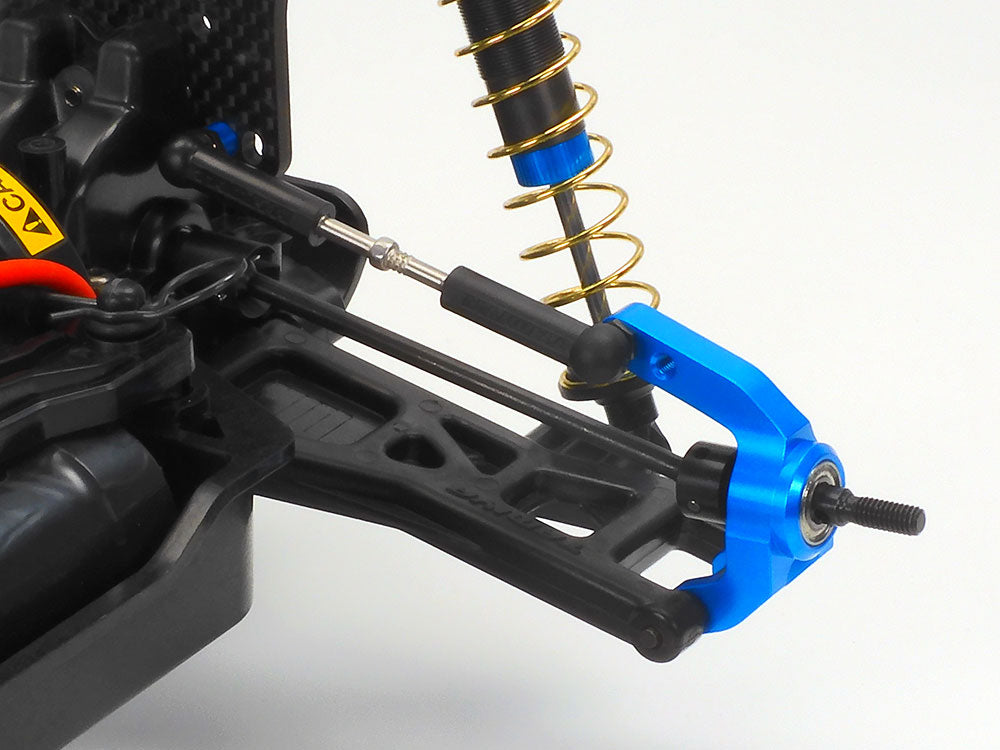

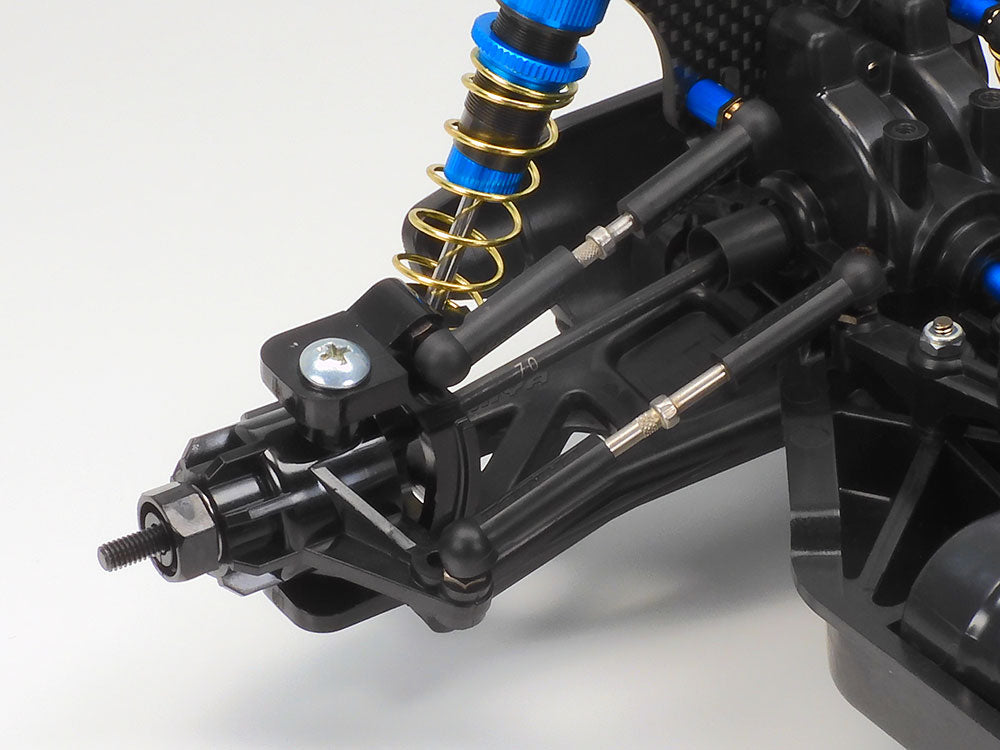

• 4-wheel independent double wishbone suspension

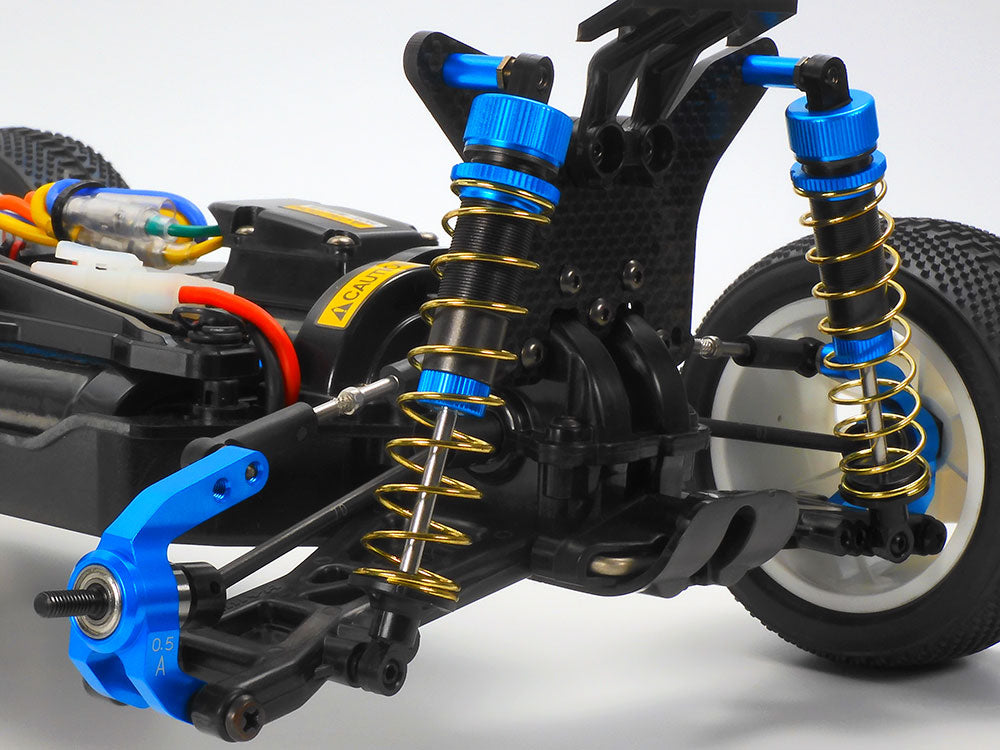

• Oil dampers with aluminum cylinders
• Gear ratio = 10.71:1 (with kit standard pinion)
• Motor and electronic speed controller (ESC) sold separately.

Separately Required Items

• Motor
• Tires
• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger
