XV-02 RS Pro 1/10 Scale Radio Control 4WD High Performance Racing Car Chassis Kit

On-Road Oriented Rally Chassis!

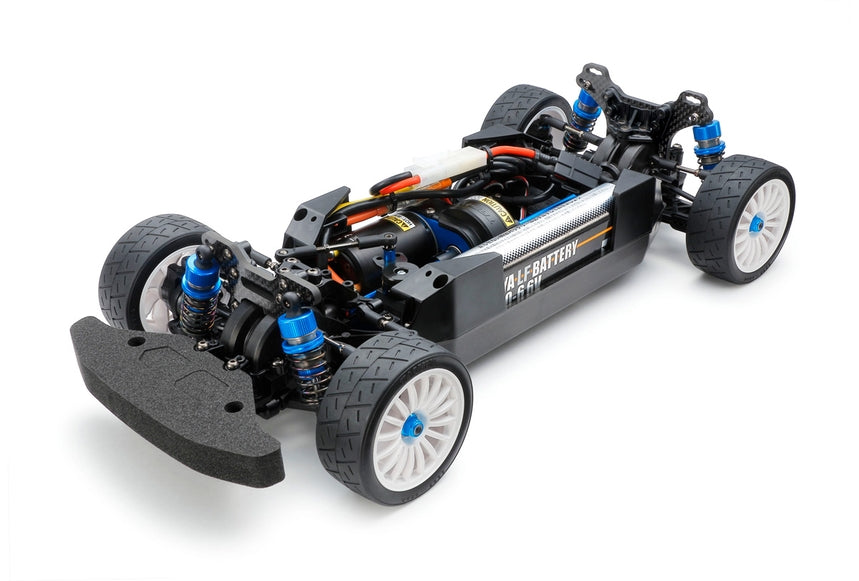

This 4WD touring chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via identical length front and rear propeller shafts, and is ideally setup for on-road running. 39T differential gears front and rear, and one setup option 40T differential gear are included, facilitating changes to drive balance. It features optimum balance and a slim chassis with carbon fiber-reinforced rigid lower deck. The 4-wheel independent double wishbone suspension has dedicated aluminum-cylinder oil dampers.

Featured Components

Drivetrain

• Full ball bearings
• Front and rear aluminum propeller shafts

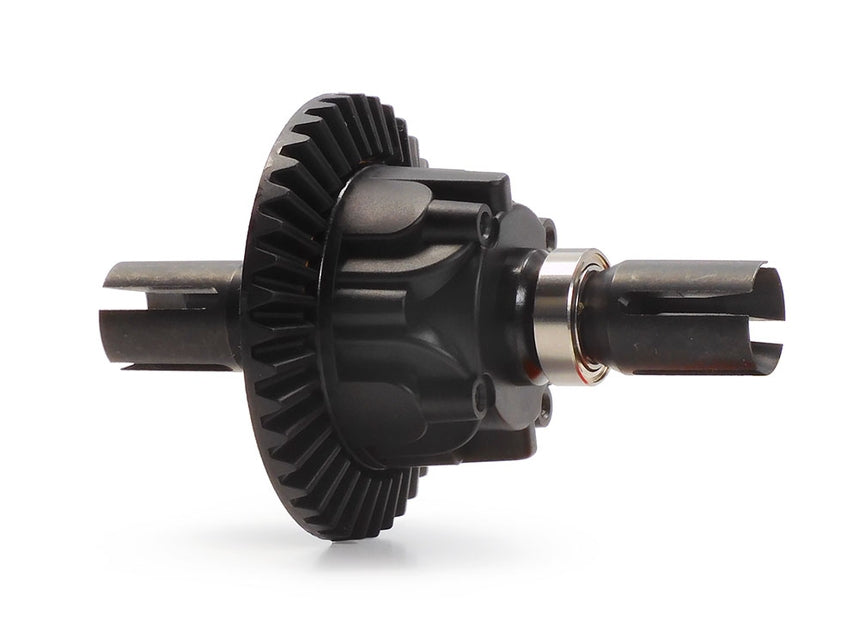

• Front and rear oil-filled gear differentials (2x 39T and 1x 40T gears included)
• Front and rear universal drive shafts

Suspension

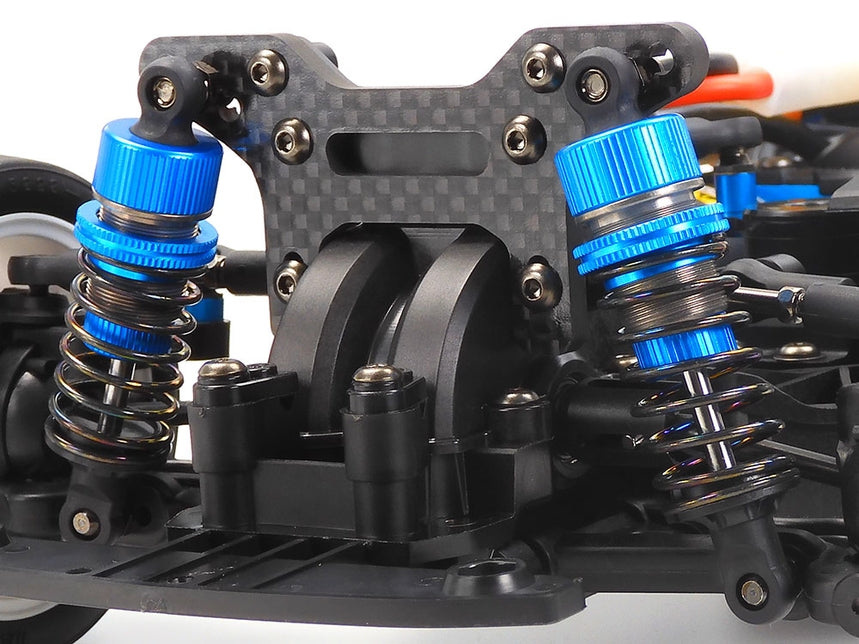

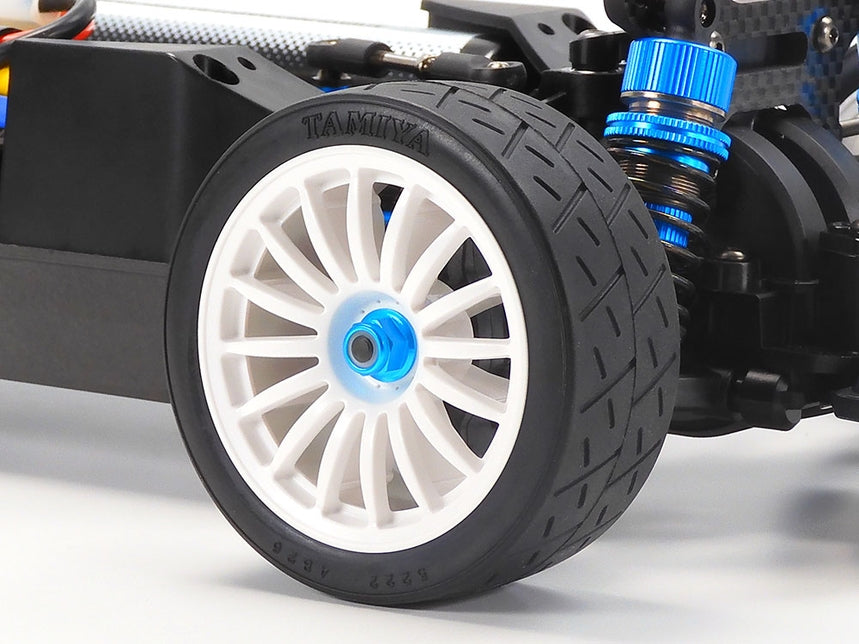

• Front and rear aluminum oil dampers (blue caps, touring car size)

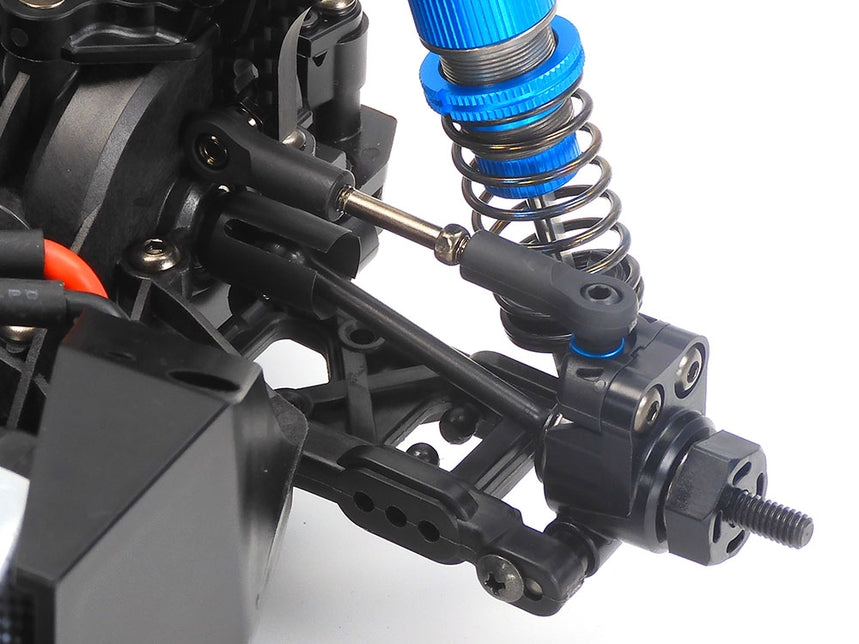

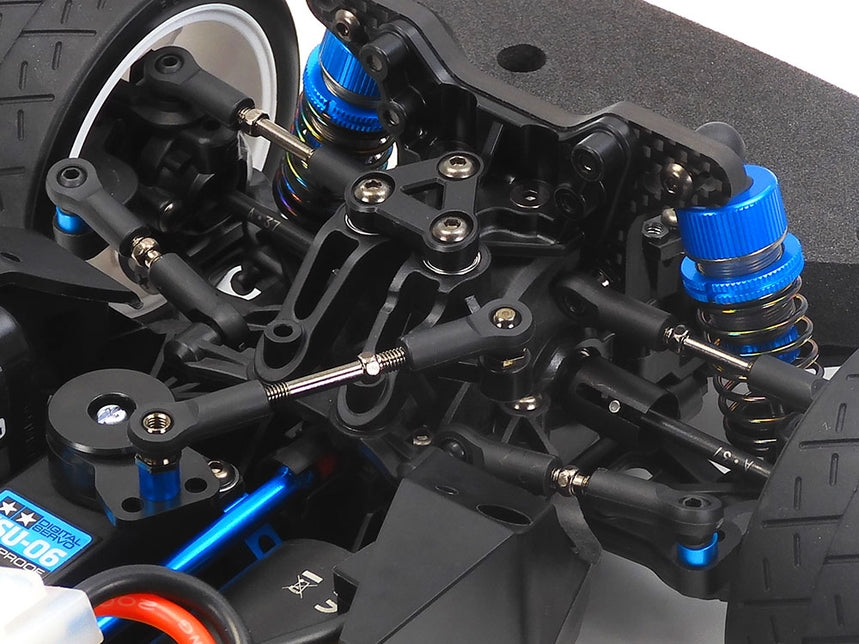

• 6-degree caster blocks, turnbuckle upper arms

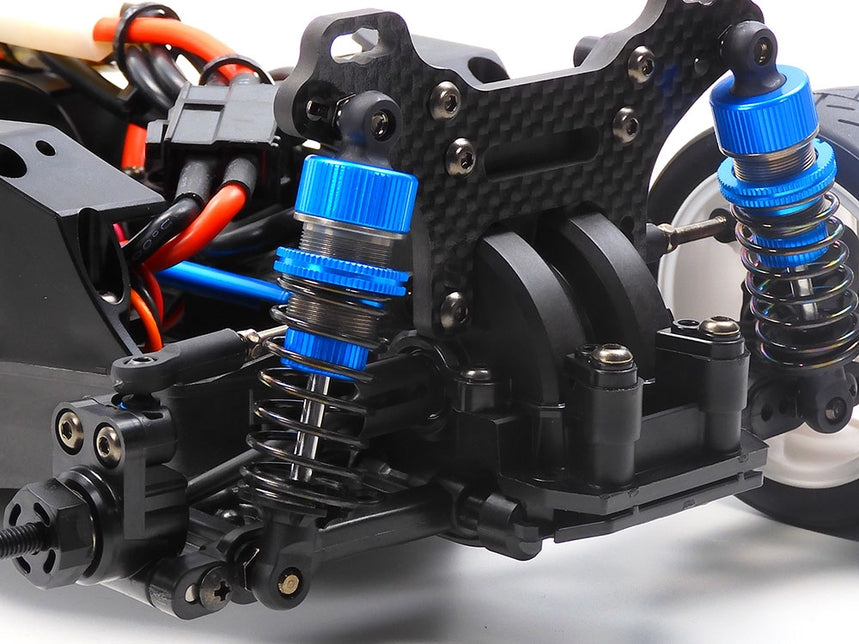

• 3.5mm thickness carbon damper stays

Chassis

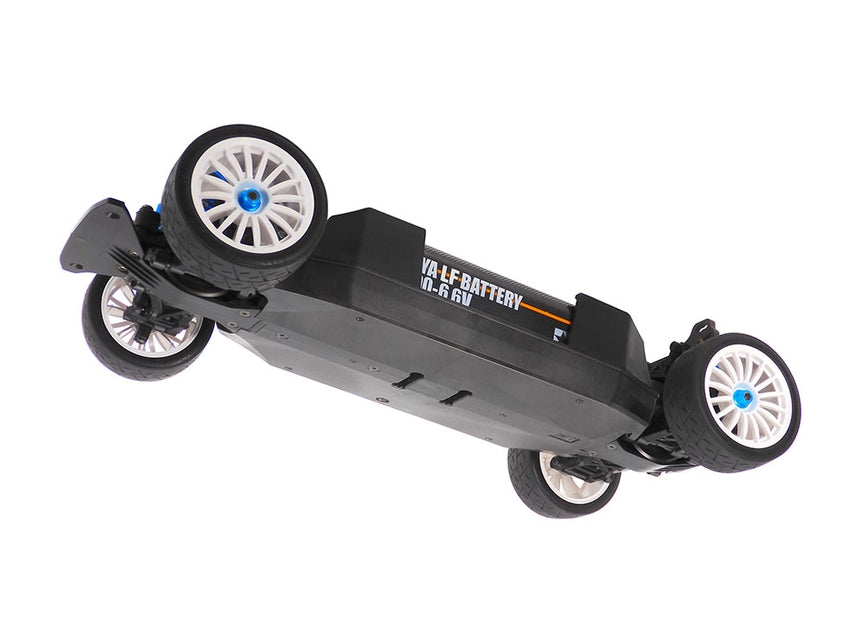

• Carbon fiber-reinforced lower deck
• Aluminum servo mount
• Angled front bumper
• Hi-torque servo saver

Specifications

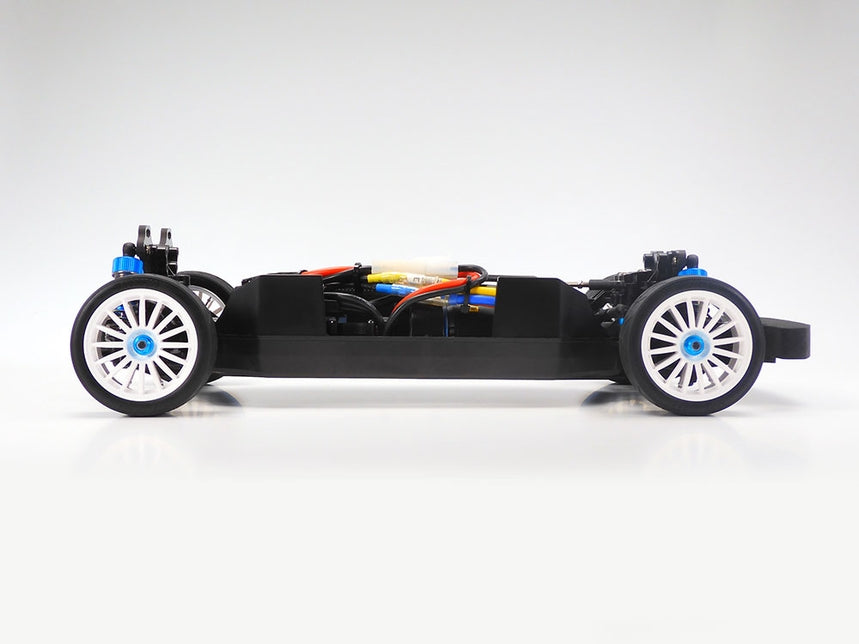

• Length: 368mm, width: 180mm
• Wheelbase: 257mm
• Carbon fiber-reinforced plastic bathtub frame

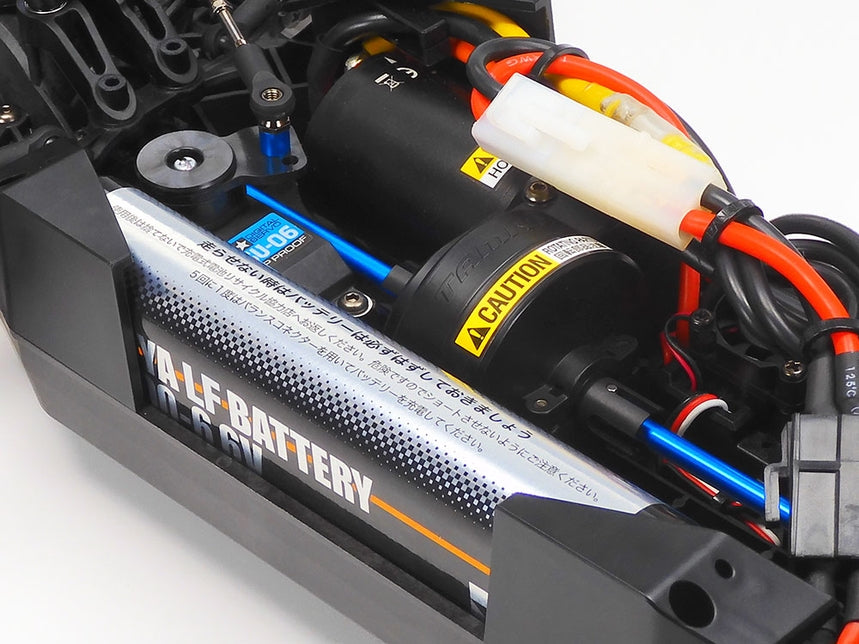

• Front midship motor, shaft-driven 4WD
• Front & rear oil-filled gear differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Aluminum cylinder oil dampers (blue caps, touring car size)
• Gear ratio = 7.00:1 using kit 26T pinion (14 ratios between 10.71:1 and 6.28:1 are possible with separately sold pinions)
• Electronic speed controller (ESC) is sold separately.

Separately Required Items

• Body
• Type 540 motor
• 2-channel R/C system w/ESC & low-profile servo
• R6/AA/UM3 batteries for transmitter

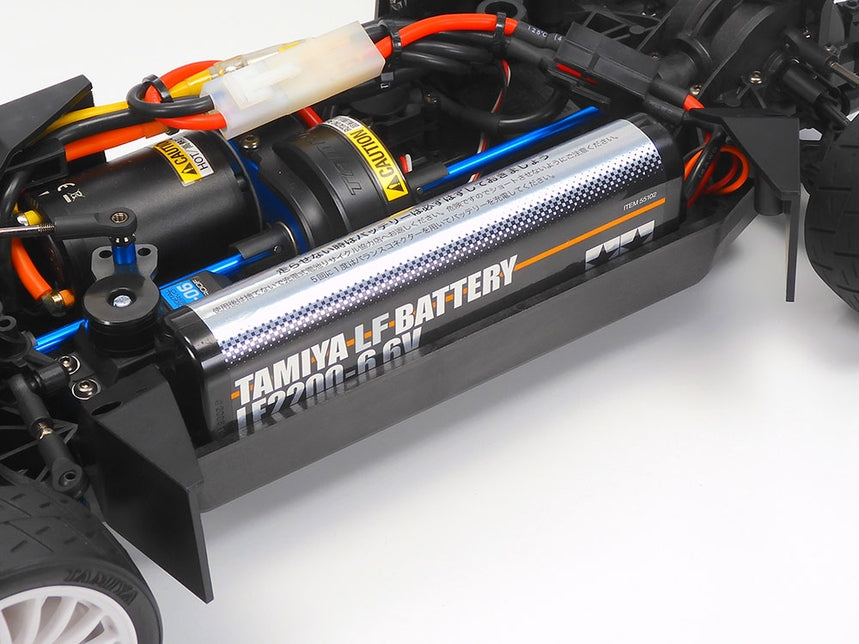

• Battery pack & charger
